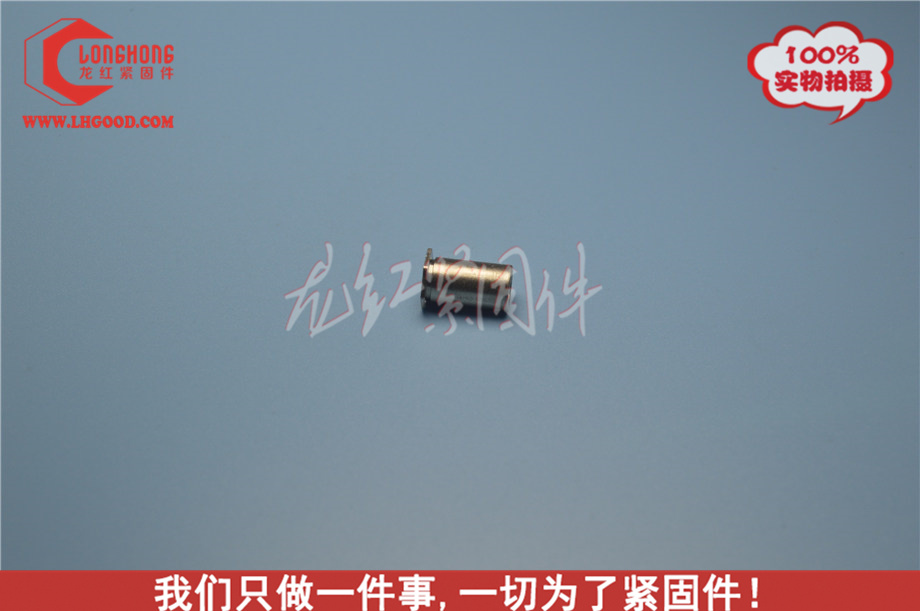

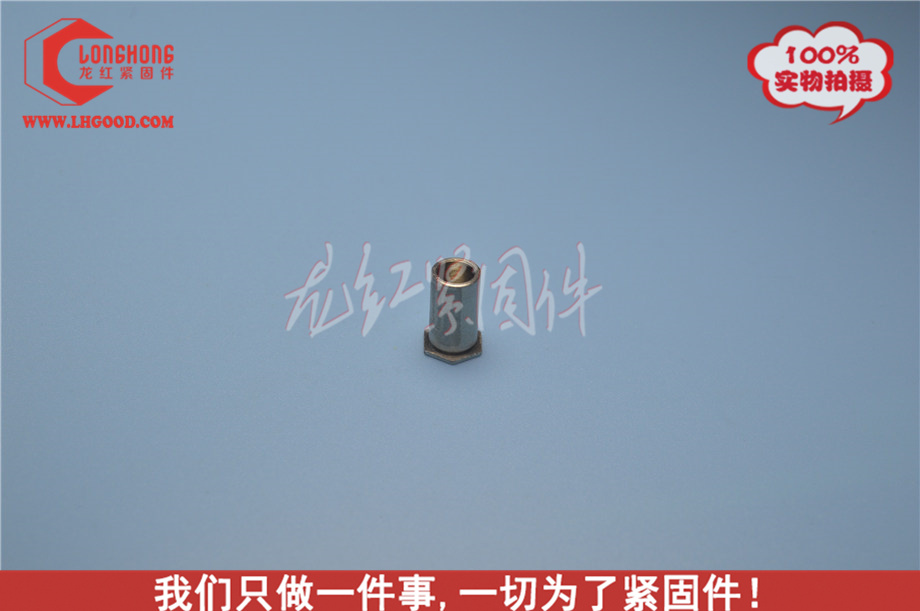

Long Hong®- 不銹鋼壓鉚螺柱SO4
副標題:不銹鋼壓鉚螺柱SO4
發布時間:2015-11-20 10:20:58 產品作者:LHGOOD 產品來源:不銹鋼BSO
關鍵詞:不銹鋼壓鉚螺柱SO4
產品TGS:產品編碼:LH-000194 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us
LH-SO / LH-SOA / LH-SOS / LH-SO4
Materia?: ST, AL, A2, A2-TW
r - ?rednica otworu
s - min grubo?? blachy
m - min odst?p od ?rodka otworu do kraw?dzi
| Gwint | STAL OCYNKOWANA |
STAL NIERDZEWNA | C +0,0 -0,13 |
D +/- 0,13 |
A Nom | s min | r +0,08 -0,00 |
m | |
|---|---|---|---|---|---|---|---|---|---|
| seria 300 | seria 400 | ||||||||
| M2 | LH-SO M2-L | LH-SOS M2-L | LH-SO4 M2-L | 4,18 | 3,20 | 4,80 | 1,0 | 4,2 | 6,00 |
| M2,5 | LH-SO M2,5-L | LH-SOS M2,5-L | LH-SO4 M2,5-L | 4,18 | 3,20 | 4,80 | 1,0 | 4,2 | 6,00 |
| M3 | LH-SO M3-L | LH-SOS M3-L | LH-SO4 M3-L | 4,18 | 3,20 | 4,80 | 1,0 | 4,2 | 6,00 |
| M3 | LH-SO ALT M3-L | LH-SOS ALT M3-L | LH-SO4 ALT M3-L | 5,39 | 3,20 | 6,40 | 1,0 | 5,4 | 6,80 |
| M3,5 | LH-SO M3,5-L | LH-SOS M3,5-L | LH-SO4 M3,5-L | 5,39 | 3,20 | 6,40 | 1,0 | 5,4 | 6,80 |
| M4 | LH-SO M4-L | LH-SOS M4-L | LH-SO4 M4-L | 7,10 | 4,80 | 7,90 | 1,3 | 7,2 | 8,00 |
| M5 | LH-SO M5-L | LH-SOS M5-L | LH-SO4 M5-L | 7,10 | 5,20 | 7,90 | 1,3 | 7,2 | 8,00 |
| Gwint | Dost?pne d?ugo?ci - (L) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M2,5 | 4 | 5 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M3 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M3,5 | 4 | 5 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M4 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| Otwór bez gwintu - B | - | 4 | 8 | 11 | ||||||||||
| Symbol | materia? | max twardo?? blachy |
|---|---|---|
| LH-SO | Stal ocynkowana | HRB 80 |
| LH-SOS | Stal nierdzewna seria 300 | HRB 70 |
| LH-SO4 | Stal nierdzewna seria 400 | HRB 90 |
| LH-SOA | Aluminium | HRB 50 |
