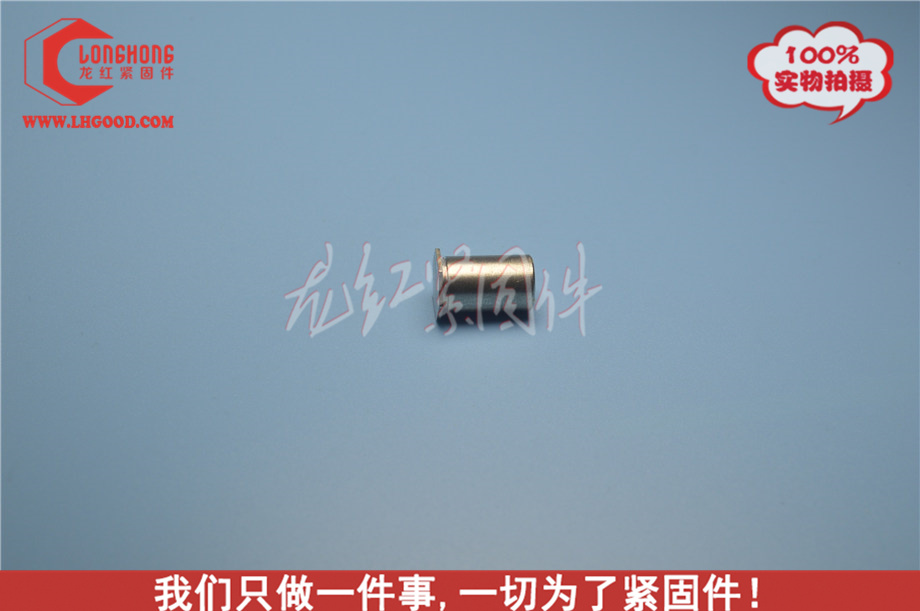

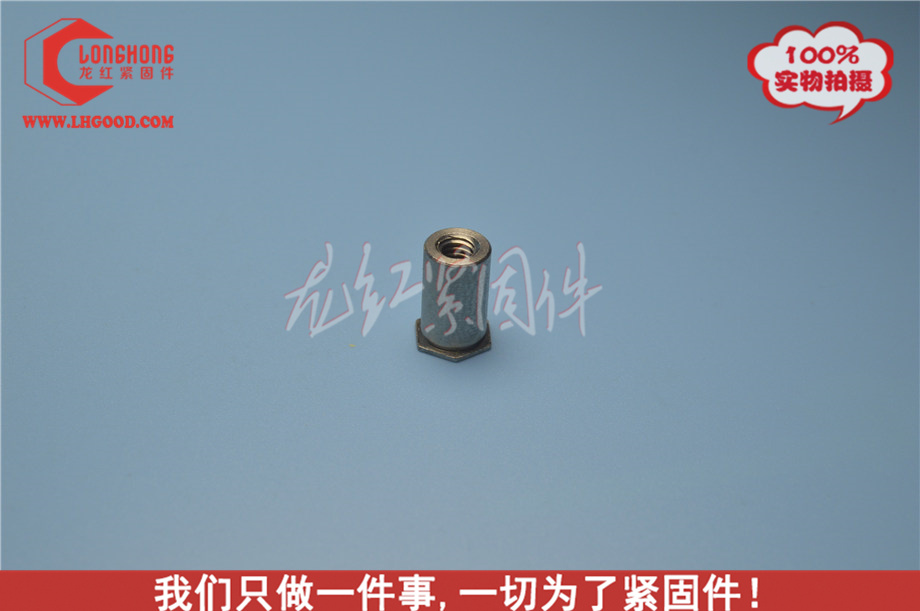

Long Hong®- 壓鉚螺柱LH-BSOS
副標題:壓鉚螺柱LH-BSOS
發布時間:2015-11-20 09:54:01 產品作者:LHGOOD 產品來源:BSO壓鉚件
關鍵詞:壓鉚螺柱LH-BSOS
產品TGS:產品編碼:LH-000190 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us
LH-BSO / LH-BSOA / LH-BSOS / LH-BSO4
Materia?: ST, AL, A2, A2-TW
| Gwint | STAL OCYNKOWANA |
STAL NIERDZEWNA | C +0,0 -0,13 |
A nom | s min |
r +0,08 -0,00 |
m | |
|---|---|---|---|---|---|---|---|---|
| seria 300 | seria 400 | |||||||
| M2 | LH-BSO M2-L | LH-BSOS M2-L | LH-BSO4 M2-L | 4,18 | 4,80 | 1,0 | 4,2 | 6,00 |
| M2,5 | LH-BSO M2,5-L | LH-BSOS M2,5-L | LH-BSO4 M2,5-L | 4,18 | 4,80 | 1,0 | 4,2 | 6,00 |
| M3 | LH-BSO M3-L | LH-BSOS M3-L | LH-BSO4 M3-L | 4,18 | 4,80 | 1,0 | 4,2 | 6,00 |
| M3 | LH-BSO ALT M3-L | LH-BSOS ALT M3-L | LH-BSO4 ALT M3-L | 5,39 | 6,40 | 1,0 | 5,4 | 6,80 |
| M3,5 | LH-BSO M3,5-L | LH-BSOS M3,5-L | LH-BSO4 M3,5-L | 5,39 | 6,40 | 1,0 | 5,4 | 6,80 |
| M4 | LH-BSO M4-L | LH-BSOS M4-L | LH-BSO4 M4-L | 7,10 | 7,90 | 1,3 | 7,2 | 8,00 |
| M5 | LH-BSO M5-L | LH-BSOS M5-L | LH-BSO4 M5-L | 7,10 | 7,90 | 1,3 | 7,2 | 8,00 |
| Gwint | - (L) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | - | - | |
| M2,5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | - | - | |
| M3 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M3,5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M4 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| M5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 | |
| - B | - | 4 | 5 | 6,5 | 11 | |||||||||
| Symbol | materia | max |
|---|---|---|
| LH-BSO | Stal ocynkowana | HRB 80 |
| LH-BSOS | Stal nierdzewna seria 300 | HRB 70 |
| LH-BSO4 | Stal nierdzewna seria 400 | HRB 88 |
| LH-BSOA | Aluminium | HRB 50 |

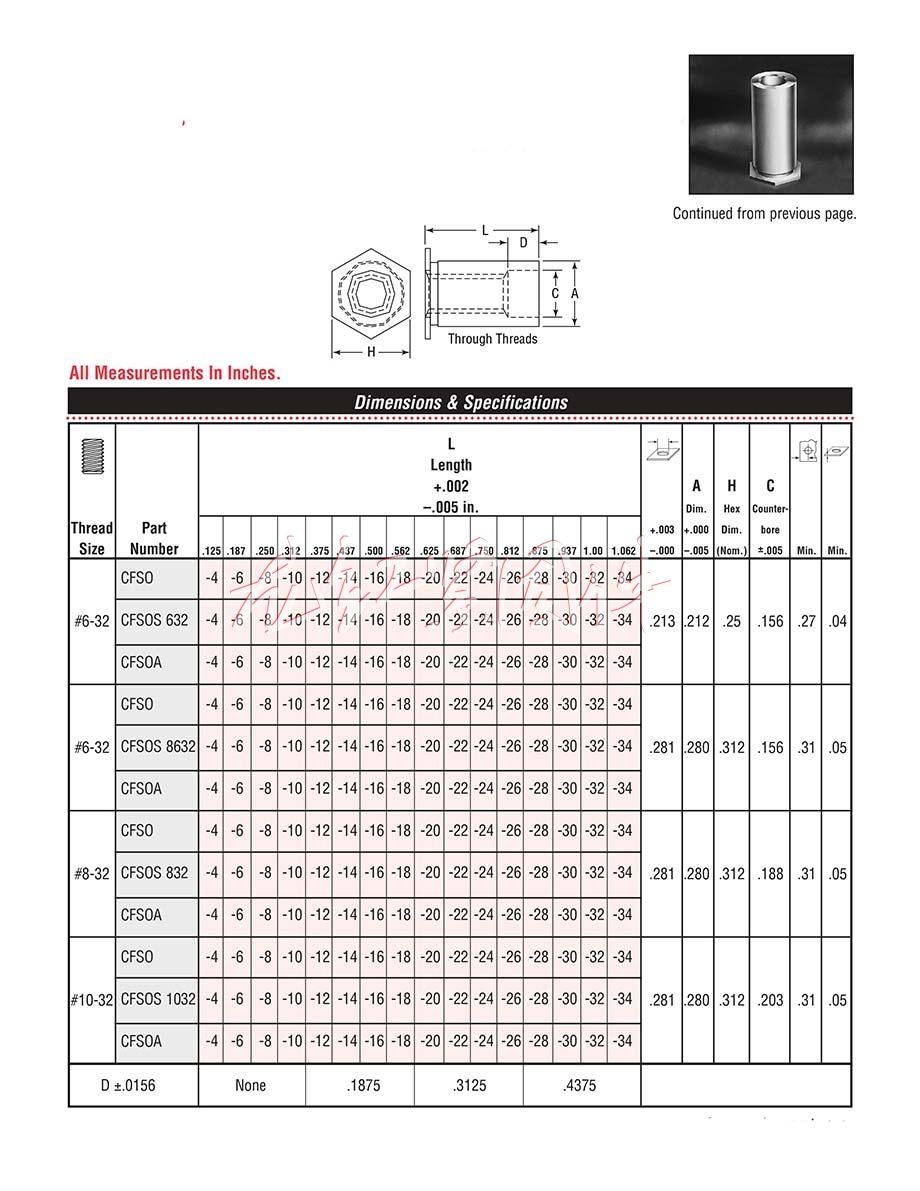

LHSO, LHSOA, LHSOS
(SO, SOA, SOS)
LHBSO, CLHBSOA, LHBSOS
(BSO, BSOA, BSOS)
