Long Hong®- 尼龍外六角螺栓,PA66,尼龍66DIN933/DIN931/半牙外六角
副標題:尼龍外六角螺栓,PA66,尼龍66DIN933/DIN931/半牙外六角
發布時間:2015-11-20 15:59:15 產品作者:LHGOOD 產品來源:不銹鋼BSO
關鍵詞:尼龍外六角螺栓,PA66,尼龍66DIN933/DIN931/半牙外六角
產品TGS:產品編碼:LH-000293 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us

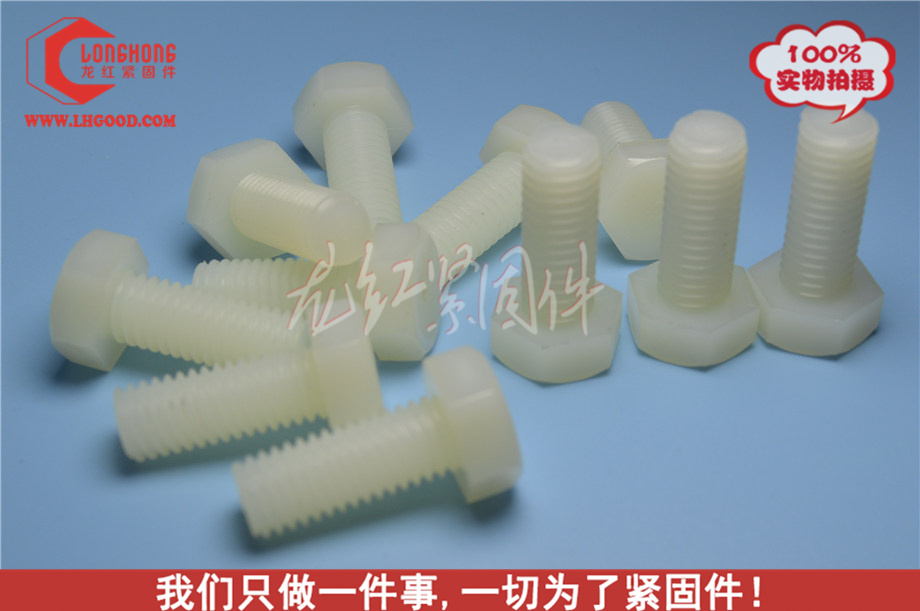

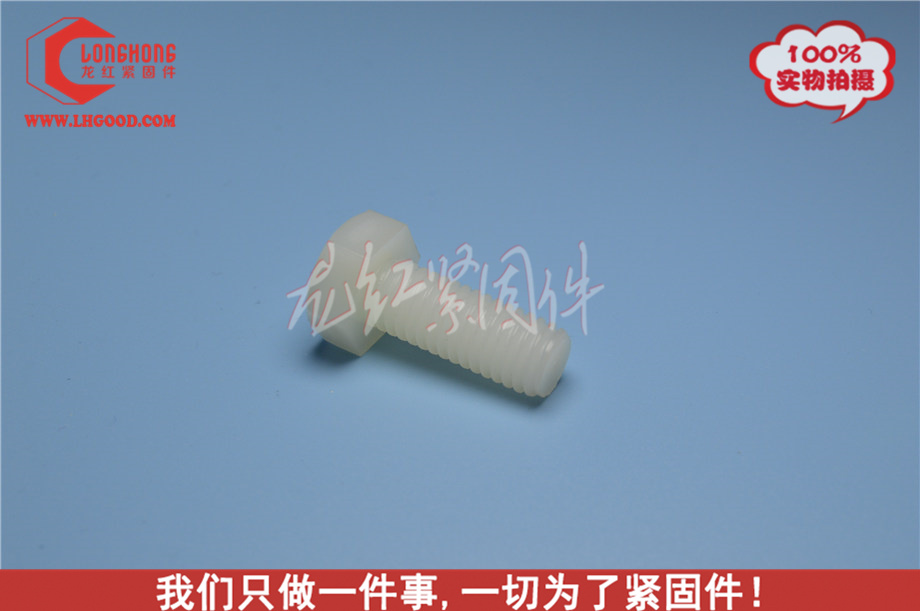

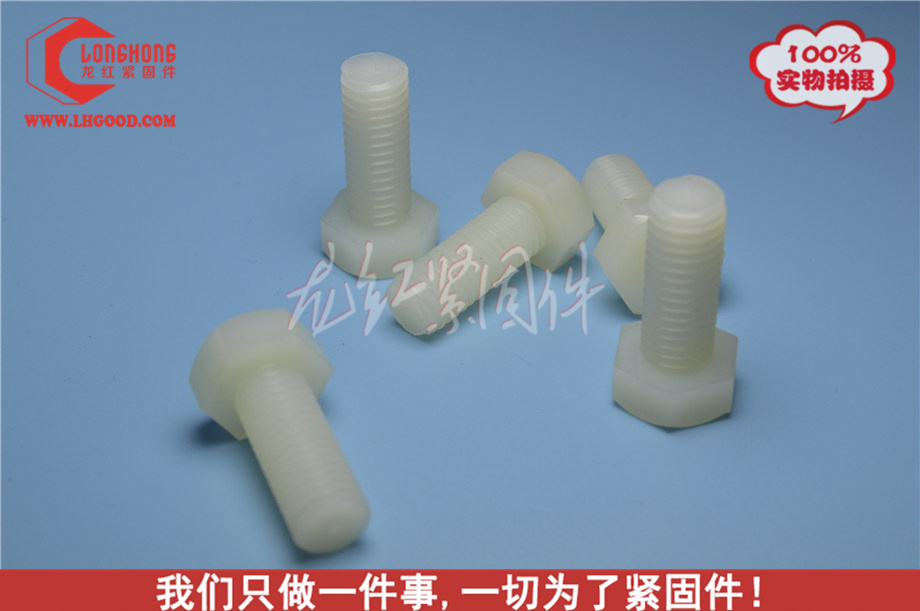

尼龍外六角螺栓,PA66,尼龍66DIN933/DIN931/半牙外六角
|
8.8 Grade Fully Threaded LHGOOD - 933-8.8 Bare Steel LHGOOD- 933-8.8 Zinc Plated |
DIN 933 ISO 4017 |
Hex Cap Screws 8.8 Grade Partially Threaded LHGOOD - 931-8.8 Bare Steel LHGOOD - 931-8.8 Zinc Plated |
DIN 931 ISO 4014 |
 |
 |
||
DIN 933
MATERIA?:
Stal kl. 8.8 bez pokrycia
Stal kl. 8.8 ocynk galw. bia?y
Stal kl. 8.8 ocynk ogniowy
Stal kl. 10.9 bez pokrycia
Stal kl. 10.9 ocynk galw. bia?y
Stal kl. 12.9 bez pokrycia
Stal nierdzewna A2
Stal kwasoodporna A4, A5
mosi?dz
| d1 | e | k | s | L |
|---|---|---|---|---|
| M3 | 6,01 | 2 | 5,5 | 5-50 |
| M4 | 7,66 | 2,8 | 7 | 6-70 |
| M5 | 8,79 | 3,5 | 8 | 6-100 |
| M6 | 11,05 | 4 | 10 | 6-150 |
| M7 | - | 4,8 | 11 | 16-45 |
| M8 | 14,38 | 5,3 | 13 | 8-200 |
| M10 | 18,9 | 6,4 | 17/16* | 10-220 |
| M12 | 21,1 | 7,5 | 19/18* | 12-260 |
| (M14) | 24,49 | 8,8 | 22/21* | 20-200 |
| M16 | 26,75 | 10 | 24 | 16-320 |
| (M18) | 30,14 | 11,5 | 27 | 30-100 |
| M20 | 33,53 | 12,5 | 30 | 20-460 |
| (M22) | 35,72 | 14 | 32/34* | 40-120 |
| M24 | 39,98 | 15 | 36 | 25-320 |
| (M27) | 45,2 | 17 | 41 | 40-200 |
| M30 | 50,85 | 18,7 | 46 | 35-320 |
| (M33) | 55,37 | 21 | 50 | 60-200 |
| M36 | 60,79 | 22,5 | 55 | 50-280 |
| (M39) | 66,44 | 25 | 60 | 80-200 |
| M42 | 71,3 | 26 | 65 | 50-220 |
| M48 | 82,6 | 30 | 75 | 60-200 |
