美國PennEngineering發表PEM® S-RT™自鉚旋轉拉帽 具簡易鎖固及抗震防松性能

　　美國PennEngineering近期發表全新PEM® S-RT™自鉚且可自由旋轉的拉帽，其修正過的螺紋角度可以讓所搭配的緊固件件鎖固更輕松，在薄板金組合上也有優異的抗震防松性能。修正過的螺紋樣式讓所搭配的緊固件工件可以在接合過程中仍能自由旋轉直至夾緊負荷產生。

　　施加的夾緊負荷與防松拉帽的抗震特點相互配合，把緊固件妥當穩固地鎖在定位。相較于傳統拉帽，其可產生優秀和穩定的接合鉗緊力。

　　PEM S-RT自鉚拉帽安裝在薄度介于.030”/0.8mm的鋁制或鋼制板金，是永久型安裝部件。一旦安裝后，讓緊固件嵌入的主金屬板金背部會呈現平面狀態，組裝面也會呈現平面狀態，因此適合用在板金對板金的接合應用。

　　New PEM® S-RT™ Self-Clinching Free-Running Locknuts with Modified Threads Enable Easier Tightening of Mating Screws and Vibration-Resistant Locking Performance

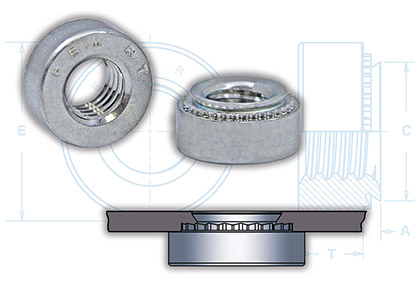

　　New PEM® S-RT™ self-clinching free-running locknuts from PennEngineering® feature a modified thread angle enabling easier tightening of mating screws and superior vibration-resistant locking performance in thin metal assemblies. The modified thread formation allows mating screws to spin freely during the attachment process until clamp load is induced during the screw-tightening process.

　　The applied clamp load then engages the locknut’s vibration-resistant locking feature, which securely and reliably locks the screw in place. Compared with traditional locknuts, excellent joint clamp load remains consistent, even after many on/off cycles.

　　PEM S-RT self-clinching locknuts install into aluminum or steel sheets as thin as .030”/0.8mm and become permanent parts of an assembly. Upon their installation using a PEMSERTER® or other standard press, the back side of the host metal sheet for screw insertion will be flush or sub-flush and the assembly side will be flush or sub-flush ideally suiting sheet-to-sheet attachment applications.

　　These carbon steel locknuts can be specified with thread sizes from #4-40 through 5/16-18 and M3 through M6 and in a variety of shank lengths. Zinc plating finishes are available in standard colorless or optional yellow.
