Long Hong®- 龍紅緊固件快訊：美國PennEngineering發表薄金屬用PEM@藏頭式自鉚螺柱
副標題:龍紅緊固件快訊：美國PennEngineering發表薄金屬用PEM@藏頭式自鉚螺柱
發布時間:2017-03-30 14:59:29 產品作者:LHGOOD 產品來源:壓鉚螺絲
關鍵詞:龍紅緊固件快訊：美國PennEngineering發表薄金屬用PEM@藏頭式自鉚螺柱
產品TGS:產品編碼:LH-0003058 點擊數:
- 新聞詳情
美國PennEngineering發表薄金屬用PEM@藏頭式自鉚螺柱
美國PennEngineering發表最新PEM®藏頭式自鉚螺柱，可永久安裝于薄金屬內以提供所搭配五金件強韌和可再使用的螺紋，同時在安裝側的板金背面維持光滑和無損傷的表面。此藏頭式特徵可以滿足板金必須全面與氣體、液體、粉塵、天然氣和其他潛在污染物隔離組裝中嚴格的進入保護要求。
安裝前的板金預備作業只需要鉆一個具備建議尺寸和最小深度的盲孔洞。使用PEMSERTER®或其他標準壓制法，施加足夠的擠壓力道把扣件置入孔洞內達到快速和簡易安裝。扣件的頭部接著就妥當緊固在板金內并可以承受大量負重。
所有的PEM藏頭式扣件都符合 RoHS規范，特選的螺柱樣式也可以指定為NAS63540/4規格。
============================================================================================
PEM® Concealed-Head Self-Clinching Studs and Standoffs for Thin Metals Provide Permanent Mating Threads and Promote Smooth and Unmarred Designs

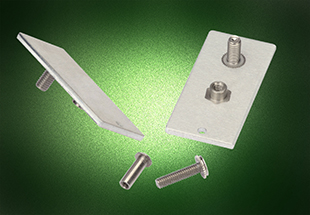

PEM® concealed-head self-clinching studs and standoffs from PennEngineering® install permanently in thin metal assemblies to provide strong and reusable threads for mating hardware while preserving a smooth and unmarred appearance on the side of the sheet opposite installation. The concealed-head feature additionally will satisfy strict ingress protection requirements in assemblies where a sheet must remain completely sealed from air, liquid, dust, gases, and other potential contaminants.
Sheet preparation for installation requires only a blind milled hole to the recommended size and minimum depth. Using a PEMSERTER® or other standard press, installation is quick and easy by placing the fastener in the hole and applying sufficient squeezing force. The fastener head then locks securely in the sheet and can handle substantial loads.
All PEM concealed-head fasteners are RoHS-compliant and selected stud types can be ordered to NAS63540/4 specifications.
