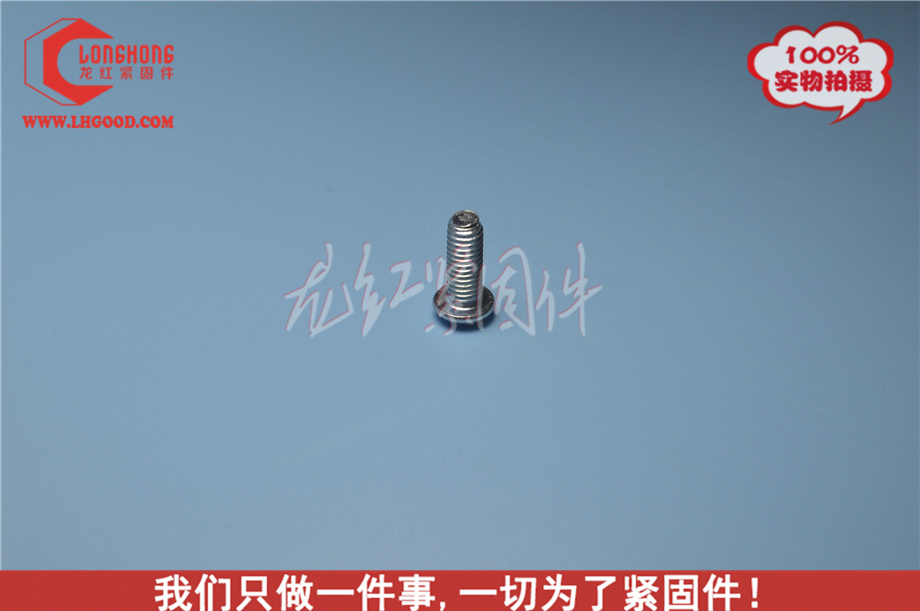

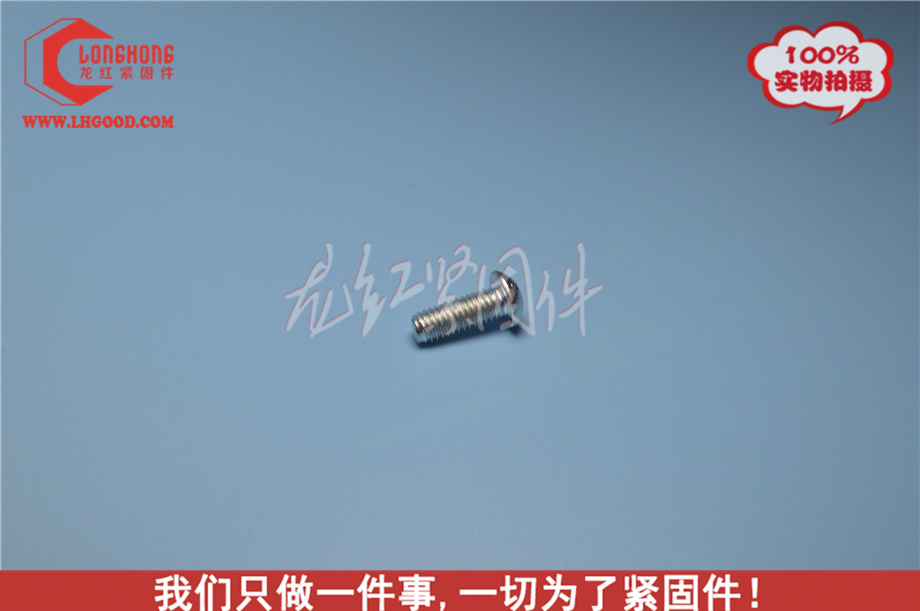

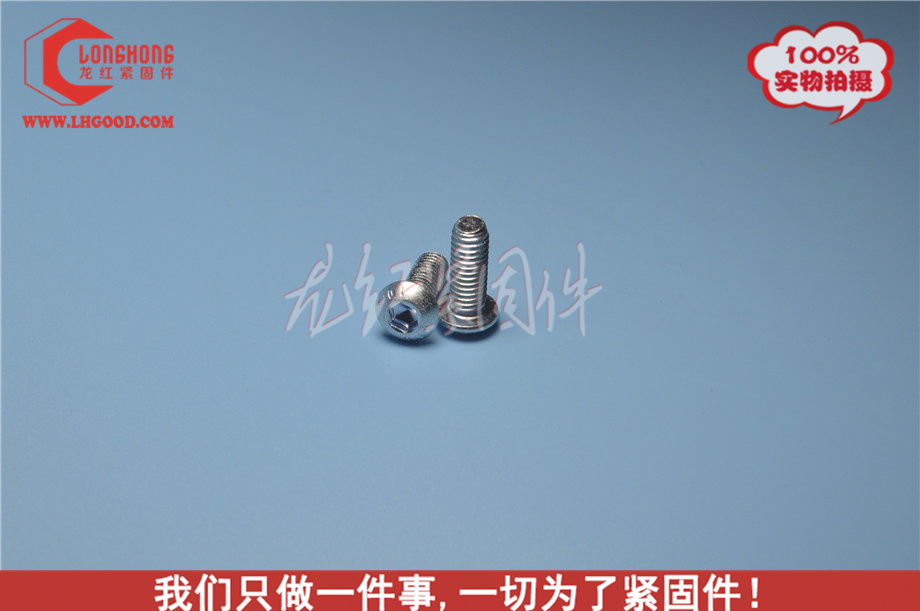

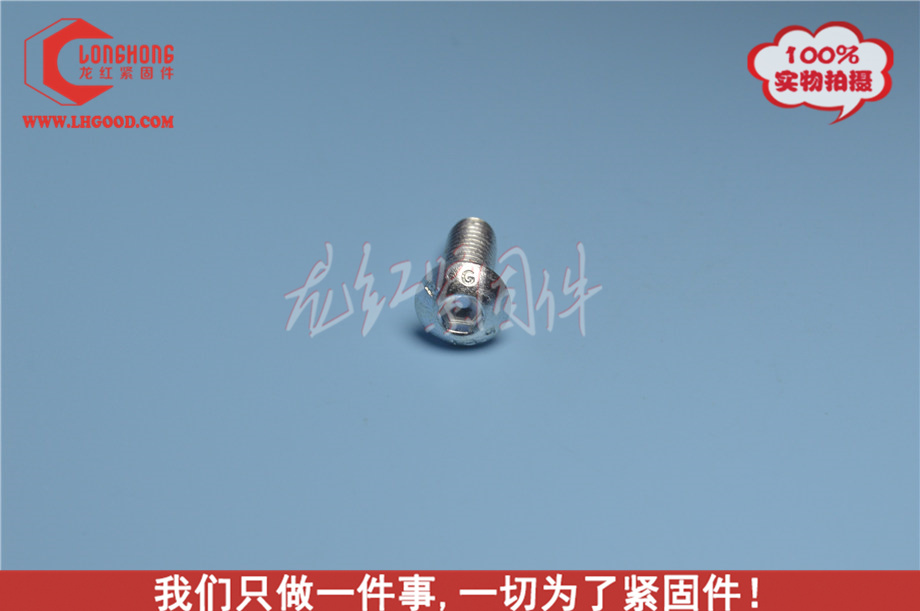

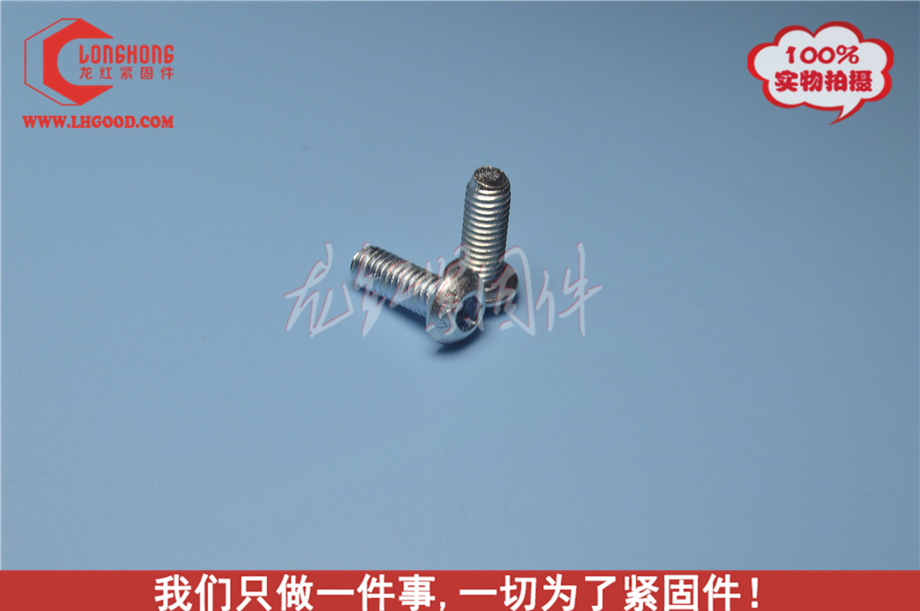

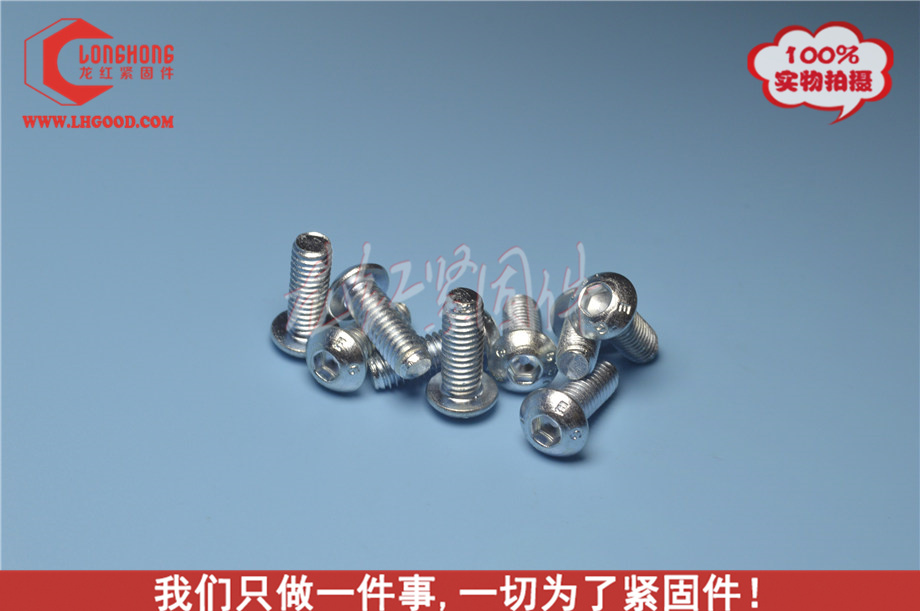

Long Hong®- 鍍蘭鋅10.9級盤頭內六角螺栓ISO7380
副標題:
發布時間:2015-11-19 09:42:49 產品作者:LHGOOD 產品來源:不銹鋼BSO
關鍵詞:蘭鋅,ISO7380,盤頭內六角螺栓
產品TGS:產品編碼:LH-000149 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us
NOTE
- Limited Use:
- Socket button head cap screws ISO 7380 are not intended for high strength application. The purpose of producing them with a strength of the property class 10.9 is to increase the wear resistance of the sockets.
- Tightening Procedure:
- Insert the key into the socket and apply the torque on the nut while holding the key. Should however, the torque be applied on the screw itself it should be reduced accordingly.
|
Button Head 圓頭內六角螺栓（鍍蘭鋅） 10.9 Grade LHGOOD - 7380-10.9 Bare Steel |
ISO 7380 |
 |
| Diameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r1 | 3 | 4.1 | 5.2 | 5.6 | 7.5 | 10 | 11 | |||||||
| t min. | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | |||||||
| s | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | |||||||
| k max. | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | |||||||
| d1 | 5.5 | 7.5 | 9.5 | 10.5 | 14 | 18 | 21 | |||||||
| R.S. Torque (NM) | 1.15 | 2.7 | 5.4 | 9.15 | 22 | 44 | 77 | |||||||
| Length (mm) | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc |
| S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | |
| 4 | 100 | |||||||||||||
| 5 | 100 | 100 | ||||||||||||
| 6 | 100 | 100 | 100 | 100 | 100 | |||||||||
| 8 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 10 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||
| 12 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||
| 14 | 100 | 100 | ||||||||||||
| 16 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 18 | 100 | 100 | 100 | |||||||||||
| 20 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 25 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||
| 30 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||
| 35 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 40 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 45 | 100 | 100 | 100 | 100 | ||||||||||
| 50 | 100 | 100 | 100 | 100 | ||||||||||
| 55 | 100 | |||||||||||||
| 60 | 100 | 100 | 100 | |||||||||||
R.S. Torque = Recommended Seating Torque
| Property Class | 10.9 |
|---|---|
| Hardness (HRC) | 32-39 |
| Tensile Strength (Mpa) | 835 min. |
